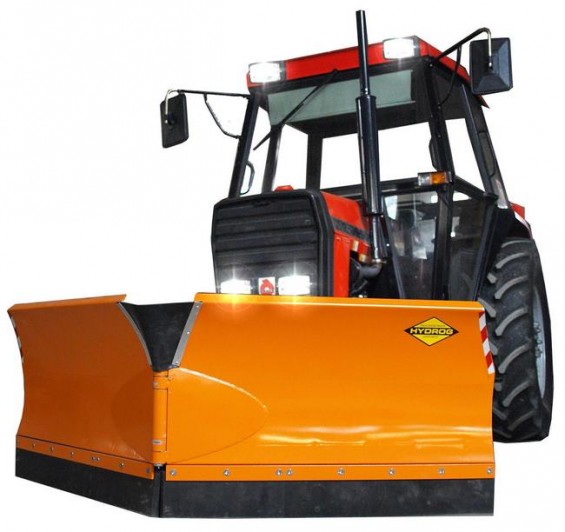

Intended for snow removal from roads, yards, sidewalks, alleys, etc.

Mounted to tractors, loaders, cars, lift trucks Multicar etc.

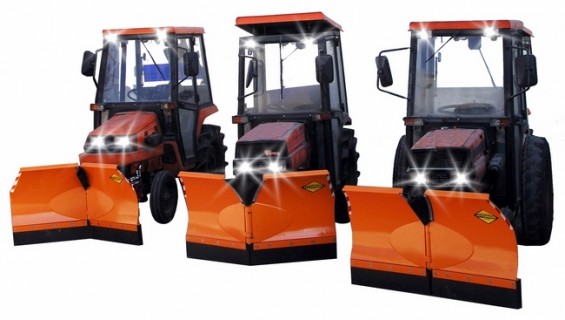

Possible adjustments: “V”, inverted “V”, side left or side right

Blades made from reinforced hard-rubber, amortized by springs

The lateral oscillations system prevents side overloading of the plough

Adjusting of the working position: hydraulic

Panel control in the cabin of carrier

Moldboard	steel
Overall moldboard length	2.600 mm	3.300 mm
Moldboard height	1100 mm	1100 mm
Steering angle of moldboard	do 45°	do 45°
Clearing width at the 30° turn	2.250 mm	2.850 mm
Clearing width at the 45° turn	1.830 mm	2.330 mm
Turning adjustment	hydraulic actuators
Actuators drive	from carrier hydraulics (potrzebny 1 obwód 2-stronnego działania)
Snowplough lifting	on carrier arms
Blade	reinforced rubber segments
Blade shock absorption	springs
Support	standard: ślizgi / option: support wheels
Security features	system oscylacji bocznej
Lighting	standard: LED marker option: LED marker, road lighting + blinkers
Moldboard with corrosion protection	3-stage (shot blasting, zinc primer, epoxy primer, polyurethane varnish)
Dimensions (L x W x H):	2.720 x 1.470 x 1.310 mm	3.420 x 1.620 x 1.310 mm
Weight	570 kg	880 kg

Optional equipment:
a) solid support wheel - carrying capacity 1 t / pc.
b) road lighting with blinkers (in standard LED marker)
c) metal blades made wtih Hardox steel ( in standard reinforced rubber segments)


Possible mount brackets:
a) on the front 3-point hitch of tractor
b) on the tractor frame - handle with its own hydraulic lift
c) on loaders arms
d) on the front plate in accordance with DIN 76060 standard
